Local Cable

Home Products Cables Local Cables

Local Cable, Cable Trays, Fire Alarm Armoured Cable, LT Cable, House Wire Exporter, Wholesaler in India

Local Cable Fire Alarm Armoured Cable 600/1000V Fire Protection Fire Alarm Armoured Cable
FA Cable
Application

Local Cable Fire alarm cable stranded copper conductor, XLPE insulated, cores laid up, PVC Inner sheathed, GI wire armoured & FRLS PVC outer sheath twin cable is used for powering firefighting equipment’s in hospital, schools, commercial complex & industries in fire security systems.

Voltage Rating : 600/1000 V
Operation Temperature : Max.: 90°C
Conductor temperature at short circuit : Max.: 250°C

Construction

  • Stranded Class 2 Copper conductor as per EN 60228
  • Insulated with XLPE type GP8 as per BS 7655-1.3
  • Extruded inner sheath with PVC as per BS 5467
  • Armoured with Galvanised Steel Round wire as per BS 5467
  • Sheathed with Extruded FRLS PVC as per BS 5467
Core Identification : Two core - Red & Black, Four core - Blue, Brown, Black & Red
Outer sheath colour : Red
Note : Black with red strip colour also available on request
Bending Radii : 12 x Overall Diameter

Weight & Dimension data
No. of core Conductor cross sectional area (sqmm) Dia over armour (mm) Outer diameter (mm) Weight (Approx.) Kg/KM
2 1.5 7.33 9.81 188
2 2.5 8.56 11.20 241
4 1.5 8.34 10.82 243
4 2.5 9.82 12.46 327

The above data is approximate & subject to manufacturing tolerance.

Electrical parameter
Area of Conductor Max. DC resistance of conductor at 20°C Plain wires Insulation resistance constant (XLPE) Dielectric strength for 1 minute Outer diameter (H.V Test) Short Circuit rating of conductor for the duration of 1 sec
Sqmm Ohm/km MΩ.Km kV kA
1.5 12.1 3.67 2 0.21
2.5 7.41 3.67 2 0.36
Current Carrying capacities
Ambient temperature: 30°C
Ground Ambient temperature: 20°C
Conductor operating temperature:90°C
Conductor cross sectional area Reference method C (clipped direct) Reference method E (in free air or on a perforated cable tray etc, horizontal or vertical etc)
1 two core cable single phase ac or dc 1 three or 1 four core cable three phase ac 1 two core cable single phase ac or dc 1 three or four core cable three phase ac
Sqmm A A A A
1.5 27 23 29 25
2.5 36 31 39 33
Local Cable Fire Alarm Armoured Cable 600/1000V Fire Protection Fire Alarm Armoured Cable
FA Cable
Application

LOCAL CABLE Fire alarm cable stranded copper conductor, XLPE insulated, cores laid up & FRLS PVC outer sheath twin cable is used for powering firefighting equipment’s in hospital, schools, commercial complex & industries in fire security systems.

Voltage Rating : 600/1000 V
Operation Temperature : Max.: 90°C
Conductor temperature at short circuit : Max.: 250°C

Construction

  • Stranded Class 2 Copper conductor as per EN 60228
  • Insulated with XLPE type GP8 as per BS 7655-1.3
  • Sheathed with Extruded FRLS PVC
Core Identification : Two core - Red & Black, Four core - Blue, Brown, Black & Red
Outer sheath colour : Red
Note : Black with red strip colour also available on request
Bending Radii : 12 x Overall Diameter

Weight, Dimension & Electrical Data
No. of core Conductor cross sectional area (sqmm) Outer diameter (mm) Weight (Approx.) Kg/KM
2 1.5 7.53 76
2 2.5 8.76 104
4 1.5 8.54 116
4 2.5 10.02 166

The above data is approximate & subject to manufacturing tolerance.

Electrical parameter
Area of Conductor Max. DC resistance of conductor at 20°C Plain wires Insulation resistance constant (XLPE) Dielectric strength for 1 minute Outer diameter (H.V Test) Short Circuit rating of conductor for the duration of 1 sec
Sqmm Ohm/km MΩ.Km kV kA
1.5 12.1 3.67 2 0.21
2.5 7.41 3.67 2 0.36
Current Carrying capacities
Ambient temperature: 30°C
Ground Ambient temperature: 20°C
Conductor operating temperature: 90°C
Conductor cross sectional area Reference method C (clipped direct) Reference method E (in free air or on a perforated cable tray etc, horizontal or vertical etc)
1 two core cable single phase ac or dc 1 three or 1 four core cable three phase ac 1 two core cable single phase ac or dc 1 three or four core cable three phase ac
Sqmm A A A A
1.5 24 22 26 23
2.5 33 30 36 32
Local Cable Fire Alarm Armoured Cable 600/1000V Fire Protection Fire Alarm Armoured Cable
FA Cable
Application

LOCAL CABLE Fire alarm signal cable stranded copper conductor, XLPE insulated, cores twisted, shielded & armoured cable is designed to use for conveying signal from fire/smoke sensor to the firefighting equipment panels in hospital, schools commercial complex & industries for security systems.

Voltage Rating : 500 V
Operation Temperature : Max.: 90°C
Conductor temperature at short circuit : Max.: 250°C

Construction

  • Stranded Class 2 Copper conductor as per EN 60228
  • Insulated with XLPE as per EN 50288-7
  • Collective screen Al/PET (Aluminium/Polyester tape) with drain wire of tinned Cu
  • Extruded inner sheath with PVC as per EN 50290-2-22
  • Armoured with Galvanised Steel Round wire as per EN 50288-7
  • Sheathed with Extruded FRLS PVC
Core Identification : White & Blue
Outer sheath colour : Red
Note : Black with red strip colour also available on request.
Bending Radii : 12 x Overall Diameter

Weight, Dimension Data
No. of core Conductor cross sectional area (sqmm) Dia over armour (mm) Outer diameter (mm) Weight (Approx.) Kg/KM
2 1.5 8.81 11.51 254
2 2.5 10.15 12.92 318

The above data is approximate & subject to manufacturing tolerance.

Electrical parameter
Area of Conductor Max. DC resistance of conductor at 20°C Plain wires Insulation resistance constant (XLPE) Mutual capacitance (XLPE) Inductance to resistance ratio(L/R)
Sqmm Ohm/km MΩ.Km nf/Km μH/Ω
1.5 12.1 1000 < 250 < 40
2.5 7.41 1000 < 250 < 60
Local Cable Fire Alarm Armoured Cable 600/1000V Fire Protection Fire Alarm Armoured Cable
FA Cable
Application

LOCAL CABLE Fire alarm signal cable stranded copper conductor, XLPE insulated, cores twisted, shielded & FRLS PVC sheathed cable is designed to use for conveying signal from fire/smoke sensor to the firefighting equipment panels in hospital, schools commercial complex & industries for security systems.

Voltage Rating : 500 V
Operation Temperature : Max.: 90°C
Conductor temperature at short circuit : Max.: 250°C

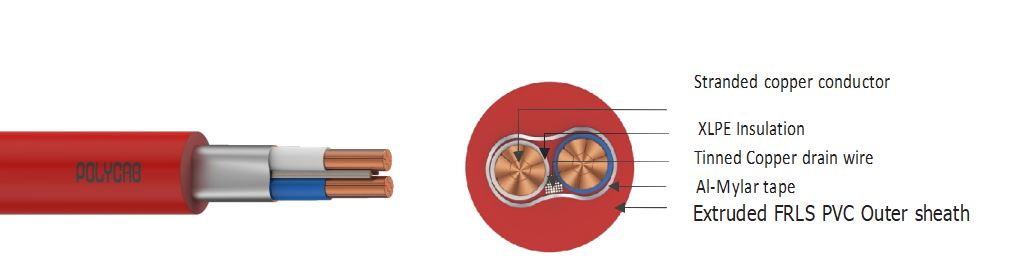

Construction

  • Stranded Class 2 Copper conductor as per EN 60228
  • Insulated with XLPE as per EN 50288-7
  • Collective screen Al/PET (Aluminium/Polyester tape) with drain wire of tinned Cu
  • Sheathed with Extruded FRLS PVC
Core Identification : White & Blue
Outer sheath colour : Red
Note : Black with red strip colour also available on request.
Bending Radii : 12 x Overall Diameter

Weight, Dimension Data
No. of core Conductor cross sectional area (sqmm) Outer diameter (mm) Weight (Approx.) Kg/KM
2 1.5 7.01 70
2 2.5 8.35 99

The above data is approximate & subject to manufacturing tolerance.

Electrical parameter
Area of Conductor Max. DC resistance of conductor at 20°C Plain wires Insulation resistance constant (XLPE) Mutual capacitance (XLPE) Inductance to resistance ratio(L/R)
Sqmm Ohm/km MΩ.Km nf/Km μH/Ω
1.5 12.1 1000 < 250 < 40
2.5 7.41 1000 < 250 < 60

LSH Building Wire, 1100 V AC

LSH Building Wire

Properties

  • Available Colour:- Red, Yellow, Blue, Black, Green, Grey
  • Nominal Voltage:- 600/1100 V
  • Max Operating Temperature:- 70 Deg C
  • Temperature Range: -15 Deg C to + 70 Deg C
  • Flame Resistant:- ASTM D2863
  • Size:- 1sqmm, 2sqmm, 2.5 sqmm, 4 sqmm, 6sqmm, 10sqmm, 16sqmm

Product Features

  • High flexibility
  • Fire safety and protection
  • High suitable for conduit wiring inside the wall
  • Eco friendly
  • Suitable for use in a damp area
  • High transparency during a high fire situation

LF Building Wire, 1100 V AC

LF Building Wire

Properties

  • Available Colour:- Red, Yellow, Blue, Black, Green, Grey
  • Nominal Voltage (UO/U): 600/1100 V.
  • Max Operating Temperature: 70°C.
  • Temperature Range:—15°C to + 70°C.
  • Flame Resistant: ASTM D2863.
  • Flammability: IEC 60332 - 122004.
  • Minimum Bending Radius: 8D.
  • Size:- 1sqmm, 2sqmm, 2.5 sqmm, 4 sqmm, 6sqmm, 10sqmm, 16sqmm

Product Features

  • High flexibility
  • Fire safety and protection
  • High suitable for conduit wiring inside the wall
  • Eco friendly
  • Suitable for use in a damp area
  • High transparency during a high fire situation

LSH-LF, 1100 V AC

LSH-LF, 1100 V AC

Properties

  • Available Colour:- Red, Yellow, Blue, Black, Green, Grey
  • Flammability: IEC 60332 – 1
  • Minimum Bending Radius: 8D
  • Nominal Voltage (UO/U): 600/1100 V
  • Max. Operating Temperature: 85°C
  • Temperature Range: -15°C to +85°C
  • Flame Resistant: ASTM 2863
  • Size:- 1sqmm, 2sqmm, 2.5 sqmm, 4 sqmm, 6sqmm, 10sqmm, 16sqmm

Product Features

  • High flexibility
  • Fire safety and protection
  • High suitable for conduit wiring inside the wall
  • Eco friendly
  • Suitable for use in a damp area
  • High transparency during a high fire situation

Local Cable SC Copper Conductor XLPE Insulated Armored Power Cable 650/1100VAC – IS 7098-PART1

LT Cable
    CONSTRUCTION
  • Stranded plain compacted copper conductor as per IS 8130
  • class 2 Insulated with Cross Linked Polyethylene (XLPE) to IS 7098-1
  • Armoured with Aluminium Round wire/Flat strip
  • armoured Sheathed with PVC Type ST2/FRLS/FR/LSZH
Application

LOCAL CABLE 2XWaY/2XFaY SC, stranded compacted copper conductor, XLPE insulated and PVC sheathed armoured cable confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Red / Black / Yellow / Blue / Natural
STANDARD AND REFERENCES :
IS 8l30:20l3 IS
583l:l984
IS 7098-l:l988
COMPLIANCE :
Conductor resistance - IS 8130:2013
Insulation resistance - IS 7098-1:1988
Flammability test - IEC 60332-1-2:2015
BENDING RADIUS : Fixed installation | 12 x Overall diameter

Electrical Characteristics
Nominal cross- sectional Buried direct in the ground In single way Ducts In air Max. DC 3 single r conductor
2 single 3 single 2 single 3 single 2 single 3 single
area core cables core cable core cables core cable core cables core cable 20˚C
mm² Amp. Amp. Amp. Amp. Amp. Amp. Ω/km
10 90 77 76 70 83 71 1.83
16 115 98 97 89 108 94 1.15
25 148 126 124 114 144 126 0.727
35 177 150 148 136 176 154 0.524
50 208 177 174 160 212 187 0.387
70 255 216 213 195 269 238 0.268
95 312 260 256 233 340 303 0.193
120 355 295 291 264 396 354 0.153
150 396 329 324 294 450 403 0.124
185 447 371 365 330 519 468 0.0991
240 515 427 420 379 613 553 0.0754
300 576 477 469 422 700 634 0.0601
400 651 537 528 473 813 737 0.047
500 727 598 589 525 930 844 0.0366
630 806 661 651 578 1056 961 0.0283
800 877 721 707 626 1179 1077 0.0221
1000 935 772 751 668 1288 1188 0.0176

Air Ambient temperature: 40˚C
Ground ambient temperature: 30˚C
Conductor operating temperature: 90˚C

Local Cable Sc Copper Conductor XLPE Insulated Unarmored Power Cable 650/1100V Ac - Is 7098-Part 1

LT Cable
Application

LOCAL CABLE 2XY SC, stranded compacted copper conductor, XLPE insulated and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C
CORE IDENTIFICATION : Red / Black / Yellow / Blue / Natural
CONSTRUCTION

  • Stranded/Solid plain compacted copper conductor as per IS 8130, class 1 or 2
  • Insulated with Cross Linked Polyethylene (XLPE) to IS 7098-1 Sheathed with PVC Type PVC Type
  • ST2/FRLS/FR/LSZH

Electrical Characteristics
Nominal cross- sectional Buried direct in the ground In single way Ducts In air Max. DC 3 single r conductor
2 single 3 single 2 single 3 single 2 single 3 single
area core cables core cable core cables core cable core cables core cable 20˚C
mm² Amp. Amp. Amp. Amp. Amp. Amp. Ω/km
mm² Amp. Amp. Amp. Amp. Amp. Amp. Ω/km
1.5 32 28 27 26 28 24 12.1
2.5 42 36 36 33 37 31 7.41
4 54 47 46 43 48 41 4.61
6 67 58 57 53 61 52 3.08
10 90 77 76 70 83 71 1.83
16 115 98 97 89 108 94 1.15
25 148 126 124 114 144 126 0.727
35 177 150 148 136 176 154 0.524
50 208 177 174 160 212 187 0.387
70 255 216 213 195 269 238 0.268
95 312 260 256 233 340 303 0.193
120 355 295 291 264 396 354 0.153
150 396 329 324 294 450 403 0.124
185 447 371 365 330 519 468 0.0991
240 515 427 420 379 613 553 0.0754
300 576 477 469 422 700 634 0.0601
400 651 537 528 473 813 737 0.047
500 727 598 589 525 930 844 0.0366
630 806 661 651 578 1056 961 0.0283
800 877 721 707 626 1179 1077 0.0221
1000 935 772 751 668 1288 1188 0.0176

Air Ambient temperature: 40˚C Ground
ambient temperature: 30˚C

Local Cable Sc Copper Conductor XLPE Insulated Unarmored Power Cable 650/1100V Ac - Is 7098-Part 1

LT Cable
Application

LOCAL CABLE A2XWaY/A2XFaY SC, stranded compacted aluminium conductor, XLPE insulated, and PVC sheathed armoured cable confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Red / Black / Yellow / Blue / Natural
CONSTRUCTION

  • Stranded compacted Aluminium conductor as per IS 8130, class 2 Insulated
  • with Cross Linked Polyethylene (XLPE) to IS 7098-1
  • Armoured with Aluminium Round wire/Flat strip armoured. Sheathed with PVC
  • Type ST2/FRLS/FR/LSZH

Electrical Characteristics

Current carrying capacity and Maximum DC conductor resistance.

Nominal cross- sectional Buried direct in the ground In single way Ducts In air Max. DC 3 single r conductor
2 single 3 single 2 single 3 single 2 single 3 single
area core cables core cable core cables core cable core cables core cable 20˚C
mm² Amp. Amp. Amp. Amp. Amp. Amp. Ω/km
10 69 59 58 54 64 55 3.08
16 89 76 75 69 84 72 1.91
25 115 98 96 89 112 98 1.2
35 137 116 115 106 137 119 0.868
50 161 137 135 124 165 145 0.641
70 198 168 165 151 209 185 0.443
95 243 202 199 181 264 235 0.32
120 276 230 226 206 308 276 0.253
150 308 256 252 229 350 314 0.206
185 349 290 285 258 406 366 0.164
240 404 335 329 298 480 434 0.125
300 454 376 369 333 551 500 0.1
400 518 429 421 378 647 589 0.0778
500 588 485 476 426 751 685 0.0605
630 663 546 536 477 868 793 0.0469
800 740 608 596 528 992 907 0.0367
1000 812 665 652 575 1117 1022 0.0291

Air Ambient temperature: 40˚C
Ground ambient temperature: 30˚C

Local Cable MC2 Copper Inductor XLPE Insulated Armored Power Cable (2XFY) 650/1100V AC – IS 7098 - Part - 1

LT Cable
Application

LOCAL CABLE 2XFY MC-2, stranded compacted copper conductor, XLPE insulated, PVC inner sheathed, Galvanised Steel Flat strip armoured, and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Red and Black
CONSTRUCTION

  • Stranded plain compacted sector shaped Copper conductor as per IS 8130, class 2
  • Insulated with Cross Linked Polyethylene (XLPE) to IS
  • 7098-1 Extruded inner sheath with PVC Type ST2 to IS 5831
  • Armoured with Galvanised Flat Steel Strip to IS
  • 3975 Sheathed with Extruded PVC Type ST2 to IS 5831

Electrical Characteristics

Current carrying capacity and Maximum DC conductor resistance.

Nominal area of conductor Buried direct in the ground In single way Ducts In air Max. DC conductor resistance at 20˚C
mm² Amp. Amp. Amp. Ω/km
16 115 96 108 1.15
25 147 122 140 0.727
35 176 146 172 0.524
50 208 173 208 0.387
70 253 211 262 0.268
95 302 252 322 0.193
120 340 284 368 0.153
150 379 317 419 0.124
185 425 357 482 0.0991
240 486 409 566 0.0754
300 541 456 644 0.0601
400 602 508 734 0.047

Air Ambient temperature: 40˚C, Ground ambient temperature: 30˚C, Conductor operating temperature: 90˚C T

Local Cable Mc-2 Copper Conductor XLPE Insulated Armored Power Cable (2Xwy) 650/1100V Ac - Is 7098-Part 1

LT Cable
Application

LOCAL CABLE 2XWY MC-2, stranded compacted copper conductor XLPE insulated, PVC inner sheathed, Galvanised Steel round wire armour and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Red and Black
CONSTRUCTION

  • Stranded plain compacted sector shaped Copper conductor as per IS 8130, class 1&2
  • Insulated with Cross Linked Polyethylene (XLPE) to IS
  • 7098-1 Extruded inner sheath with PVC Type ST2 to IS 5831
  • Armoured with Galvanised Steel round wire to
  • IS 3975 Sheathed with Extruded PVC Type ST2 to IS 5831

Electrical Characteristics

Current carrying capacity and Maximum DC conductor resistance.

Nominal area of conductor Buried direct in the ground In single way Ducts In air Max. DC conductor resistance at 20˚C
Sqmm Ohm/km MΩ.Km nf/Km μH/Ω
4 54 45 48 4.61
6 67 56 61 3.08
10 89 75 83 1.83
16 115 96 108 1.15
25 147 122 140 0.727
35 176 146 172 0.524
50 208 173 208 0.387
70 253 211 262 0.268
95 302 252 322 0.193
120 340 284 368 0.153
150 379 317 419 0.124
185 425 357 482 0.0991
240 486 409 566 0.0754
300 541 456 644 0.0601
400 602 508 734 0.047

Air Ambient temperature: 40˚C, ground ambient temperature: 30˚C, Conductor operating temperature: 90˚C The above table is in accordance with IS 3961(part 6):2016

Local Cable Mc-2 Aluminium Conductor XLPE Insulated Armored Power Cable (A2Xfy) 650/1100V Ac - Is 7098-Part 1

LT Cable
Application

LOCAL CABLE 2XFY MC-2, stranded compacted copper conductor, XLPE insulated, PVC inner sheathed, Galvanised Steel Flat strip armoured, and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Red and Black
CONSTRUCTION

  • Stranded compacted sector shaped Aluminium conductor as per IS 8130, class 2
  • Insulated with Cross Linked Polyethylene (XLPE) to IS
  • 7098-1 Extruded inner sheath with PVC Type ST2/FRLS/FR/LSZH
  • Armoured with Galvanised Flat Steel Strip to IS 3975
  • Sheathed with Extruded PVC Type ST2/FRLS /FR/LSZH

Electrical Characteristics

Current carrying capacity and Maximum DC conductor resistance.

Nominal area of conductor Buried direct in the ground In single way Ducts In air Max. DC conductor resistance at 20˚C
mm² Amp. Amp. Amp. Ω/km
16 89 74 83 1.91
25 114 95 109 1.2
35 136 113 133 0.868
50 161 134 162 0.641
70 197 164 204 0.443
95 235 196 251 0.320
120 266 222 287 0.253
150 296 248 328 0.206
185 335 281 379 0.164
240 385 324 448 0.125
300 432 364 513 0.100
400 487 412 593 0.0778
500 548 463 683 0.0605
630 612 518 784 0.0469

Air Ambient temperature: 40˚C, Ground ambient temperature: 30˚C, Conductor operating temperature: 90˚C

Local Cable Mc-3 Copper Conductor XLPE Insulated Unarmored Power Cable (2Xy) 650/1100V Ac - Is 7098-Part 1

LT Cable
Application

LOCAL CABLE 2XY MC-3, Stranded compacted copper conductor, XLPE insulated and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Red, Yellow and Blue
CONSTRUCTION

  • Stranded plain compacted (≤ 16 sqmm)/Non compacted copper conductor as per IS 8130, class 1 & 2
  • Insulated with Cross Linked Polyethylene (XLPE) to
  • IS 7098-1 Extruded inner sheath with PVC Type ST2/FRLS/FR/LSZH
  • Sheathed with Extruded PVC Type ST2/FRLS/FR/LSZH

Electrical Characteristics

Current carrying capacity and Maximum DC conductor resistance.

Nominal area of conductor Buried direct in the ground In single way Ducts In air Max. DC conductor resistance at 20˚C
Sqmm Ohm/km MΩ.Km nf/Km μH/Ω
4 45 38 41 4.61
6 56 47 52 3.08
10 74 62 70 1.83
16 95 79 89 1.15
25 122 102 119 0.727
35 146 122 147 0.524
50 173 144 179 0.387
70 212 177 226 0.268
95 254 212 279 0.193
120 287 240 320 0.153
150 321 269 365 0.124
185 362 304 422 0.0991
240 418 352 500 0.0754
300 469 396 574 0.0601
400 528 447 662 0.047

Air Ambient temperature: 40˚C,
Ground ambient temperature: 30˚C,

Local Cable Mc-3 Aluminium Conductor XLPE Insulated Unarmored Power Cable (2Xy) 650/1100V Ac - Is 7098-Part 1

LT Cable
Application

LOCAL CABLE A2XY MC-3, Stranded compacted aluminium conductor, XLPE insulated, and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Red, Yellow and Blue
CONSTRUCTION

  • Stranded compacted/Non compacted aluminium conductor as per IS 8130, class 1 & 2
  • Insulated with Cross Linked Polyethylene (XLPE) to IS
  • 7098-1 Extruded inner sheath with PVC Type ST2/FRLS/FR/LSZH
  • Sheathed with Extruded PVC Type ST2/FRLS/FR/LSZH

Electrical Characteristics

Current carrying capacity and Maximum DC conductor resistance.

Nominal area of conductor Buried direct in the ground In single way Ducts In air Max. DC conductor resistance at 20˚C
mm² Amp. Amp. Amp. Ω/km
4 35 30 32 7.41
6 46 38 42 4.61
10 57 48 54 3.08
16 74 61 69 1.91
25 95 79 93 1.2
35 114 94 114 0.868
50 134 112 138 0.641
70 164 137 175 0.443
95 197 164 216 0.32
120 223 187 249 0.253
150 249 209 284 0.206
185 282 238 329 0.164
240 327 276 392 0.125
300 369 312 452 0.1
400 420 356 526 0.0778

Air Ambient temperature: 40˚C,
Ground ambient temperature: 30˚C,

Local Cable Mc-3 Copper Conductor XLPE Insulated Unarmored Power Cable (2Xy) 650/1100V Ac - Is 7098-Part 1

LT Cable
Application

LOCAL CABLE 2XFY MC-3,Stranded compacted copper conductor, XLPE insulated, PVC inner sheathed, Galvanised Steel Flat strip armour and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Red, Yellow and Blue
CONSTRUCTION

  • Stranded plain compacted sector shaped copper conductor as per IS 8130, class 2
  • Insulated with Cross Linked Polyethylene (XLPE) to IS
  • 7098-1 Extruded inner sheath with PVC Type ST2/FRLS/FR/LSZH
  • Armoured with Galvanised Flat Steel Strip to IS 3975
  • Sheathed with Extruded PVC Type ST2/FRLS/FR/LSZH

Electrical Characteristics

Current carrying capacity and Maximum DC conductor resistance.

Nominal area of conductor Buried direct in the ground In single way Ducts In air Max. DC conductor resistance at 20˚C
Sqmm Ohm/km MΩ.Km nf/Km μH/Ω
16 95 79 89 1.15
25 122 102 119 0.727
35 146 122 147 0.524
50 173 144 179 0.387
70 212 177 226 0.268
95 254 212 279 0.193
120 287 240 320 0.153
150 321 269 365 0.124
185 362 304 422 0.0991
240 418 352 500 0.0754
300 469 396 574 0.0601
400 528 447 662 0.047

Air Ambient temperature: 40˚C,
Ground ambient temperature: 30˚C,
Conductor operating temperature: 90˚C

Local Cable Mc-3 Copper Conductor XLPE Insulated Armored Power Cable (2Xwy) 650/1100V Ac - Is 7098-Part 1

LT Cable
Application

LOCAL CABLE 2XWY MC-3, Stranded compacted copper conductor, XLPE insulated, PVC inner sheathed, Galvanised Steel round wire armour and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Red, Yellow and Blue
CONSTRUCTION

  • Stranded plain compacted sector shaped copper conductor as per IS 8130, class 1 & 2
  • Insulated with Cross Linked Polyethylene (XLPE) to IS
  • 7098-1 Extruded inner sheath with PVC Type ST2/FRLS/FR/LSZH
  • Armoured with Galvanised Flat Round Wire to IS
  • 3975 Sheathed with Extruded PVC Type ST2/FRLS/FR/LSZH

Electrical Characteristics

Current carrying capacity and Maximum DC conductor resistance.

Nominal area of conductor Buried direct in the ground In single way Ducts In air Max. DC conductor resistance at 20˚C
mm² Amp. Amp. Amp. Ω/km
4 45 38 41 4.61
6 56 47 52 3.08
10 74 62 70 1.83
16 95 79 89 1.15
25 122 102 119 0.727
35 146 122 147 0.524
50 173 144 179 0.387
70 212 177 226 0268
95 254 212 279 0.193
120 287 240 320 0.153
150 321 269 365 0.124
185 362 304 422 0.0991
240 418 352 500 0.0754
300 469 396 574 0.0601
400 528 447 662 0.047

Air Ambient temperature: 40˚C,
Ground ambient temperature: 30˚C,
Conductor operating temperature: 90˚C

Local Cable Mc-3 Aluminium Conductor XLPE Insulated Armored Power Cable (A2Xfy) 650/1100V Ac - Is 7098-Part 1

LT Cable
Application

LOCAL CABLE A2XFY MC-3, Stranded compacted aluminium conductor, XLPE insulated, PVC inner sheathed, Galvanised Steel Flat strip armour and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Red, Yellow and Blue
CONSTRUCTION

  • Stranded plain compacted sector shaped copper conductor as per IS 8130, class 1 & 2/li>
  • Insulated with Cross Linked Polyethylene (XLPE) to IS
  • 7098-1 Extruded inner sheath with PVC Type ST2/FRLS/FR/LSZH
  • Armoured with Galvanised Flat Round Wire to IS
  • 3975 Sheathed with Extruded PVC Type ST2/FRLS/FR/LSZH

Electrical Characteristics

Current carrying capacity and Maximum DC conductor resistance.

Nominal area of conductor Buried direct in the ground In single way Ducts In air Max. DC conductor resistance at 20˚C
Sqmm Ohm/km MΩ.Km nf/Km μH/Ω
16 74 61 69 1.91
25 95 79 93 1.20
35 114 94 114 0.868
50 134 112 138 0.641
70 164 137 175 0.443
95 197 164 216 0.32
120 223 187 249 0.253
150 249 209 284 0.206
185 282 238 329 0.164
240 327 276 392 0.125
300 369 312 452 0.100
400 420 356 526 0.0778
500 478 412 612 0.0605

Air Ambient temperature: 40˚C,
Ground ambient temperature: 30˚C,
Conductor operating temperature: 90˚C

Local Cable Mc-3.5 Copper Conductor XLPE Insulated Unarmored Power Cable (2Xy) 650/1100V Ac - Is 7098-Part 1

LT Cable
Application

LOCAL CABLE 2XY MC-3.5, Stranded compacted copper conductor, XLPE insulated and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Red, Yellow and Blue
CONSTRUCTION

  • Stranded plain compacted (≤ 16 sqmm)/Non compacted copper conductor as per IS 8130, class 1 & 2
  • Insulated with Cross Linked Polyethylene (XLPE) to
  • IS 7098-1 Extruded inner sheath with PVC Type ST2/FRLS/FR/LSZH
  • Sheathed with Extruded PVC Type ST2/FRLS/FR/LSZH

Electrical Characteristics

Current carrying capacity and Maximum DC conductor resistance.

Nominal area of conductor Buried direct in the ground In single way Ducts In air Max. DC conductor resistance at 20˚C
mm² Amp. Amp. Amp. Ω/km
25 122 102 119 0.727
35 146 122 147 0.524
50 173 144 179 0.387
70 212 177 226 0.268
95 254 212 279 0.193
120 287 240 320 0.153
150 321 269 365 0.124
185 362 304 422 0.0991
240 418 352 500 0.0754
300 469 396 574 0.0601
400 528 447 662 0.047

Air Ambient temperature: 40˚C,
Ground ambient temperature: 30˚C

Local Cable Mc-3.5 Aluminium Conductor XLPE Insulated Unarmored Power Cable (2Xy) 650/1100V Ac - Is 7098-Part 1

LT Cable
Application

LOCAL CABLE A2XY MC-3.5, Stranded compacted aluminium conductor, XLPE insulated, and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Red, Yellow and Blue
CONSTRUCTION

  • Stranded compacted/Non compacted aluminium conductor as per IS 8130, class1&2
  • Insulated with Cross Linked Polyethylene (XLPE) to IS
  • 7098-1 Extruded inner sheath with PVC Type ST2/FRLS/FR/LSZH
  • Sheathed with Extruded PVC Type ST2/FRLS/FR/LSZH

Electrical Characteristics

Current carrying capacity and Maximum DC conductor resistance.

Nominal area of conductor Buried direct in the ground In single way Ducts In air Max. DC conductor resistance at 20˚C
Sqmm Ohm/km MΩ.Km nf/Km μH/Ω
16 74 61 69 1.91
25 95 79 93 1.2
35 114 94 114 0.868
50 134 112 138 0.641
70 164 137 175 0.443
95 197 164 216 0.32
120 223 187 249 0.253
150 249 209 284 0.206
185 282 238 329 0.164
240 327 276 392 0.125
300 369 312 452 0.1
400 420 356 526 0.0778
500 478 412 612 0.0605

Air Ambient temperature: 40˚C,
Ground ambient temperature: 30˚C,

Local Cable Mc-4 Copper Conductor XLPE Insulated Unarmored Power Cable (2Xy) 650/1100V Ac - Is 7098-Part 1

LT Cable
Application

LOCAL CABLE 2XY MC-4, Stranded compacted copper conductor, XLPE insulated, and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Red, Yellow and Blue
CONSTRUCTION

  • Stranded compacted/Non compacted Copper conductor as per IS 8130, class1&2
  • Insulated with Cross Linked Polyethylene (XLPE) to IS
  • 7098-1 Extruded inner sheath with PVC Type ST2/FRLS/FR/LSZH
  • Sheathed with Extruded PVC Type ST2/FRLS/FR/LSZH

Electrical Characteristics

Current carrying capacity and Maximum DC conductor resistance.

Nominal area of conductor Buried direct in the ground In single way Ducts In air Max. DC conductor resistance at 20˚C
mm² Amp. Amp. Amp. Ω/km
4 45 38 41 4.61
6 56 47 52 3.08
10 74 62 70 1.83
16 95 79 89 1.15
25 122 102 119 0.727
35 146 122 147 0.524
50 173 144 179 0.387
70 212 177 226 0.268
95 254 212 279 0.193
120 287 240 320 0.153
150 321 269 365 0.124
185 362 304 422 0.0991
240 418 352 500 0.0754
300 469 396 574 0.0601
400 528 447 662 0.047

Air Ambient temperature: 40˚C,
Ground ambient temperature: 30˚C,

Local Cable Mc-4 Aluminium Conductor XLPE Insulated Unarmored Power Cable (2Xy) 650/1100V Ac - Is 7098-Part 1

LT Cable
Application

LOCAL CABLE 2XY MC-4, Stranded compacted Aluminium conductor, XLPE insulated, and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Red, Yellow and Blue
CONSTRUCTION

  • Stranded compacted/Non compacted Copper conductor as per IS 8130, class1&2
  • Insulated with Cross Linked Polyethylene (XLPE) to IS
  • 7098-1 Extruded inner sheath with PVC Type ST2/FRLS/FR/LSZH
  • Sheathed with Extruded PVC Type ST2/FRLS/FR/LSZH

Electrical Characteristics

Current carrying capacity and Maximum DC conductor resistance.

Nominal area of conductor Buried direct in the ground In single way Ducts In air Max. DC conductor resistance at 20˚C
Sqmm Ohm/km MΩ.Km nf/Km μH/Ω
4 45 38 41 4.61
6 56 47 52 3.08
10 74 62 70 1.83
16 95 79 89 1.15
25 122 102 119 0.727
35 146 122 147 0.524
50 173 144 179 0.387
70 212 177 226 0.268
95 254 212 279 0.193
120 287 240 320 0.153
150 321 269 365 0.124
185 362 304 422 0.0991
240 418 352 500 0.0754
300 469 396 574 0.0601
400 528 447 662 0.047

Air Ambient temperature: 40˚C,
Ground ambient temperature: 30˚C,

Local Cable Mc 1.5 Sqmm Copper Conductor XLPE Insulated Armored Control Cable (2Xfy) 650/1100V Ac - Is 7098-Part 1

LT Cable
Application

LOCAL CABLE 1.5 2XFY MC, Stranded/solid copper conductor, XLPE insulated, PVC inner sheathed, Galvanised Steel strip armour and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Grey with number printing
CONSTRUCTION

  • Stranded compacted/Non compacted Copper conductor as per IS 8130, class1&2
  • Insulated with Cross Linked Polyethylene (XLPE) to IS
  • 7098-1 Extruded inner sheath with PVC Type ST2/FRLS/FR/LSZH
  • Sheathed with Extruded PVC Type ST2/FRLS/FR/LSZH

Electrical Characteristics

Current carrying capacity and Maximum DC conductor resistance.

Cross Sectional Area Number of Cores Max. DC conductor resistance at 20˚C Current Rating
Sqmm No's Ω/km In Ground (A) In Air(A)
1.5 16 12.1 14 12
1.5 19 12.1 14 12
1.5 21 12.1 12 11
1.5 24 12.1 12 11
1.5 27 12.1 11 9
1.5 30 12.1 11 9
1.5 33 12.1 11 9
1.5 37 12.1 11 9
1.5 44 12.1 9 8
1.5 52 12.1 9 8
1.5 61 12.1 9 8

Air Ambient temperature: 40˚C,
Ground ambient temperature: 30˚C,
Conductor operating temperature: 90˚C

Local Cable Mc 1.5 Sqmm Copper Conductor XLPE Insulated Unarmored Control Cable (2Xfy) 650/1100V Ac - Is 7098-Part 1

LT Cable
Application

LOCAL CABLE 1.5 2XY MC, Stranded/solid copper conductor, XLPE insulated, PVC inner sheathed, and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Red, Yellow, Blue, Black & Grey upto 5Core & 6 Core & above Grey with number printing.
CONSTRUCTION

  • Stranded compacted/Non compacted Copper conductor as per IS 8130, class1&2
  • Insulated with Cross Linked Polyethylene (XLPE) to IS
  • 7098-1 Extruded inner sheath with PVC Type ST2/FRLS/FR/LSZH
  • Sheathed with Extruded PVC Type ST2/FRLS/FR/LSZH

Electrical Characteristics

Current carrying capacity and Maximum DC conductor resistance.

Cross Sectional Area Number of Cores Max. DC conductor resistance at 20˚C Current Rating
Sqmm No's Ω/km In Ground (A) In Air(A)
1.5 2 12.1 31 27
1.5 3 12.1 26 23
1.5 4 12.1 26 23
1.5 5 12.1 26 23
1.5 6 12.1 23 20
1.5 7 12.1 20 18
1.5 8 12.1 17 15
1.5 9 12.1 17 15
1.5 10 12.1 17 15
1.5 12 12.1 16 14
1.5 14 12.1 16 14
1.5 16 12.1 14 12
1.5 19 12.1 14 12
1.5 21 12.1 12 11
1.5 24 12.1 12 11
1.5 27 12.1 11 9
1.5 30 12.1 11 9
1.5 33 12.1 11 9
1.5 37 12.1 11 9
1.5 44 12.1 9 8
1.5 44 12.1 9 8
1.5 44 12.1 9 8

Air Ambient temperature: 40˚C,
Ground ambient temperature: 30˚C,
Conductor operating temperature: 90˚C

Local Cable Mc 2.5 Sqmm Copper Conductor XLPE Insulated Armored Control Cable (2Xfy) 650/1100V Ac - Is 7098-Part 1

LT Cable
Application

LOCAL CABLE 2.5 2XFY MC, Stranded/solid copper conductor, XLPE insulated, PVC inner sheathed, Galvanised Steel strip armour and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Grey with number printing
CONSTRUCTION

  • Stranded compacted/Non compacted Copper conductor as per IS 8130, class1&2
  • Insulated with Cross Linked Polyethylene (XLPE) to IS
  • 7098-1 Extruded inner sheath with PVC Type ST2/FRLS/FR/LSZH
  • Sheathed with Extruded PVC Type ST2/FRLS/FR/LSZH

Electrical Characteristics

Current carrying capacity and Maximum DC conductor resistance.

Cross Sectional Area Number of Cores Max. DC conductor resistance at 20˚C Current Rating
Sqmm No's Ω/km In Ground (A) In Air(A)
1.5 16 12.1 14 12
1.5 19 12.1 14 12
1.5 21 12.1 12 11
1.5 24 12.1 12 11
1.5 27 12.1 11 9
1.5 30 12.1 11 9
1.5 33 12.1 11 9
1.5 37 12.1 11 9
1.5 44 12.1 9 8
1.5 52 12.1 9 8
1.5 61 12.1 9 8

Air Ambient temperature: 40˚C,
Ground ambient temperature: 30˚C,
Conductor operating temperature: 90˚C

Local Cable Mc 1.5 Sqmm Copper Conductor XLPE Insulated Unarmored Control Cable (2Xfy) 650/1100V Ac - Is 7098-Part 1

LT Cable
Application

LOCAL CABLE 2.5 2XY MC, Stranded/solid copper conductor, XLPE insulated, PVC inner sheathed, and PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and including 1100 V. This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.

VOLTAGE RATING : 650/1100 V
OPERATION TEMPERATURE : Max.: 90˚C / Short circuit temperature 250˚C
CORE IDENTIFICATION : Red, Yellow, Blue, Black & Grey upto 5Core & 6 Core & above Grey with number printing
CONSTRUCTION

  • Stranded compacted/Non compacted Copper conductor as per IS 8130, class1&2
  • Insulated with Cross Linked Polyethylene (XLPE) to IS
  • 7098-1 Extruded inner sheath with PVC Type ST2/FRLS/FR/LSZH
  • Sheathed with Extruded PVC Type ST2/FRLS/FR/LSZH

Electrical Characteristics

Current carrying capacity and Maximum DC conductor resistance.

Cross Sectional Area Number of Cores Max. DC conductor resistance at 20˚C Current Rating
Sqmm No's Ω/km In Ground (A) In Air(A)
1.5 2 12.1 31 27
1.5 3 12.1 26 23
1.5 4 12.1 26 23
1.5 5 12.1 26 23
1.5 6 12.1 23 20
1.5 7 12.1 20 18
1.5 8 12.1 17 15
1.5 9 12.1 17 15
1.5 10 12.1 17 15
1.5 12 12.1 16 14
1.5 14 12.1 16 14
1.5 16 12.1 14 12
1.5 19 12.1 14 12
1.5 21 12.1 12 11
1.5 24 12.1 12 11
1.5 27 12.1 11 9
1.5 30 12.1 11 9
1.5 33 12.1 11 9
1.5 37 12.1 11 9
1.5 44 12.1 9 8
1.5 52 12.1 9 8
1.5 61 12.1 9 8

Air Ambient temperature: 40˚C,
Ground ambient temperature: 30˚C,
Conductor operating temperature: 90˚C

Request A Quote
