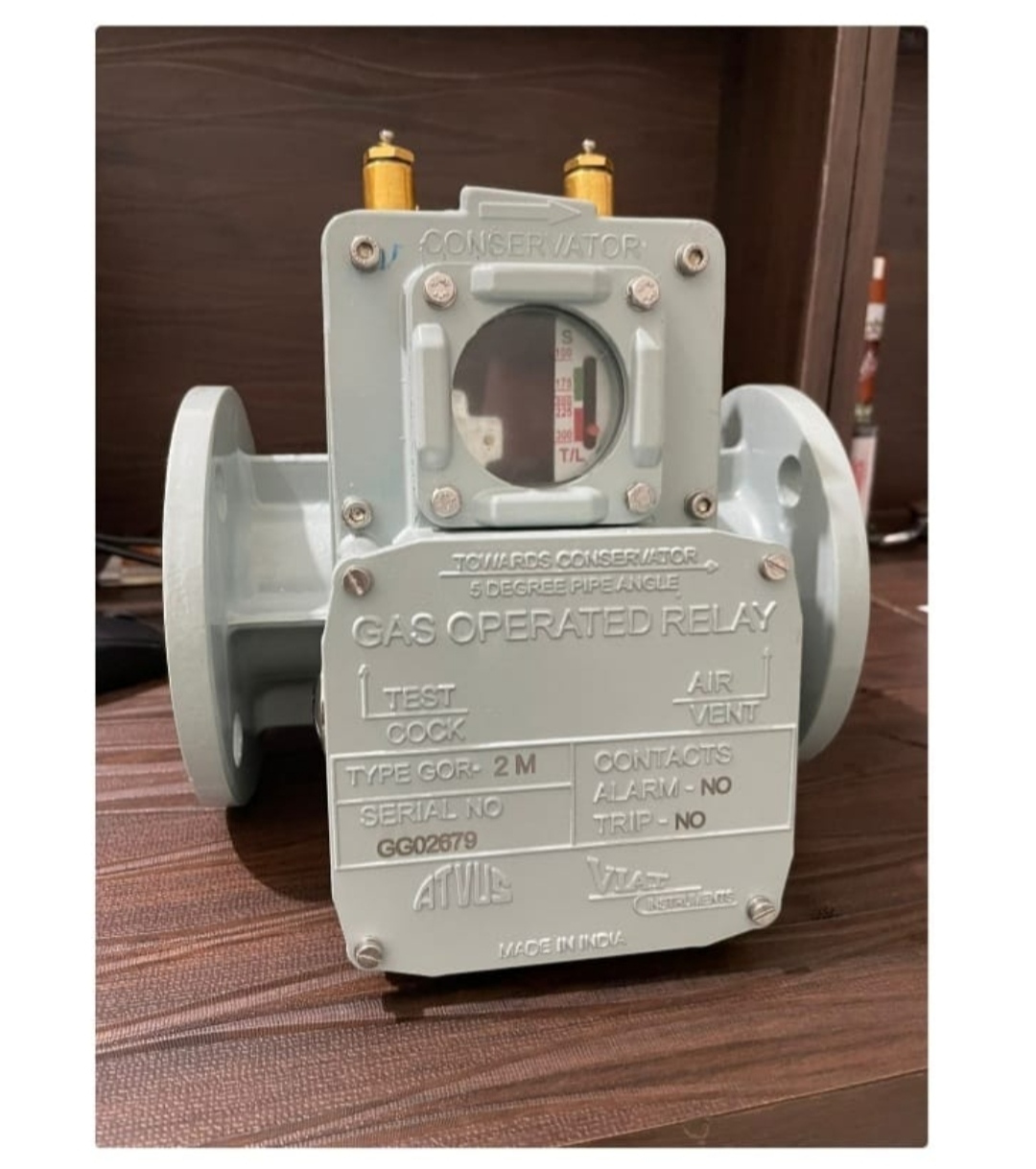

A Buchholz relay is a protective device used in oil filled electrical transformers to detect and respond to internal faults and abnormal operating conditions. It plays a critical role in ensuring the safe operation of transformers by providing early warning of potential faults that could lead to failure.
This type of product operates on the principle of gas and oil movement within the transformer. It is installed in the oil filled conservator tank connected to the transformer. The relay consists of a float switch mechanism that detects the presence of gas or oil flow within the tank. When a fault occurs inside the transformer such as a partial discharge, overheating, it generates gas bubbles, causing the float to rise.
This commodity is designed to detect two main types of faults in transformers namely minor faults and major faults. Minor faults such as partial discharge, produce gas bubbles that trigger a warning signal from the relay. Major faults such as internal short circuits or severe breakdown, result in rapid gas evolution and oil surges, causing the relay to isolate the transformer from the electrical system.
Upon detecting a fault, it initiates a response to protect the transformer and prevent further damage. Depending on the severity of the fault, the relay can activate alarms . By isolating the transformer from the network, the this kind helps prevent failures, fire hazards and equipment damage.
Regular maintenance and testing of this kind of relays are essential to ensure their proper functioning. Periodic inspections, gas sampling and functional tests are conducted to verify the responsiveness of the relay. Any signs of gas accumulation, oil leaks or mechanical issues should be promptly addressed to maintain the integrity of the protective system.
Applications
- Transformer Protection : One of the applications of the component is in transformer protection. It is installed in the oil filled conservator tank of the transformer and is designed to detect faults such as partial discharges, overheating and internal short circuits.
- Fault Detection : The product is highly sensitive to changes in gas and oil flow within the transformer. It can detect minor faults that may indicate deteriorating insulation. By detecting these problems early such relays help prevent severe faults from occurring, reducing the risk of transformer failure.
- Overload Protection : In addition to detecting faults, this type of relay can provide protection against overload conditions in transformers. If the transformer is subjected to excessive load currents, it can lead to overheating.
- Fire Prevention : In the event of a severe flaw such as an internal short circuit or insulation failure, the transformer may experience rapid gas evolution and oil surges, leading to the risk of fire. This type of relay can quickly detect these conditions and initiate a trip signal to isolate the transformer.
- Maintenance and Diagnostics : This category of relay is used for maintenance and diagnostic purposes in transformer monitoring systems. By analyzing the gas and oil samples collected by the relay, the workers in charge of maintenance can assess the condition of the transformer, identify potential issues and plan preventive maintenance activities.
